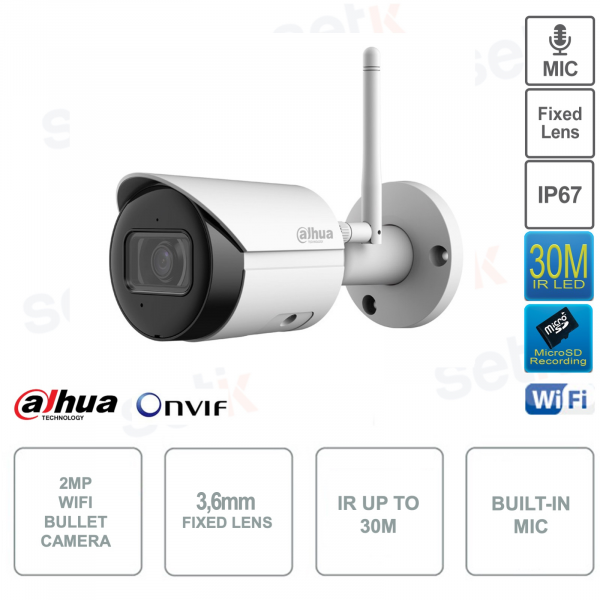

CAMERA IP 2MP WIFI BULLET 3,6MM IR30M IP67 MICROSD 12V

Name: CAMERA IP 2MP WIFI BULLET 3,6MM IR30M IP67 MICROSD 12V
Brand: DAHUA
SKU: 104778
Availability: InStock

75,04 €

Telecamera Wireless IP ONVIF da esterno Dahua IPC-HFW1230DS-SAW Serie Consumer Bullet 2MP 1080p Full HD, ottica fissa 3,6mm e sensore 1/2.8” CMOS – Smart H.265+ – Dual Stream – Antenna WI-FI 2.4G fino a 80m in spazio aperto – Microfono – Motion Detection – IR 1xLED 30M, Day/Night (ICR), BLC, HLC, 3DNR, AGC, AWB, ROI, Mirror Mode – Allarme eventi – Slot MicroSD (256GB – non inclusa) – Protezione IP67 da esterno – Corpo in metallo.

Specifiche

Camera

Image Sensor 1/2.8″ CMOS

Max. Resolution 1920 (H) × 1080 (V)

ROM 16 MB

RAM 64 MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Min. Illumination
0.025 [email protected] (Color, 30 IRE)

0.0025 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio >56 dB

Illumination Distance 30 m (98.43 ft) (IR LED)

Illuminator On/Off Control Auto; manual

Illuminator Number 1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type Fixed-focal

Lens Mount M12

Focal Length 3,6mm

Max. Aperture F2.0

Field of View Horizontal: 86°; Vertical: 43°; Diagonal: 102°

Iris Control Fixed

Close Focus Distance 1.0 m (3.28 ft)

Video

Video Compression H.264B; H.264; H.264H; H.265

Smart Codec Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080 (1–25/30 fps)

Sub stream: 704 × 576 (1–25 fps) 704 × 480 (1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability 2 streams

Resolution 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)

Bit Rate Control CBR/VBR

Video Bit Rate

H264: 24 kbps–4096 kbps

H265: 9 kbps–4096 kbps

Day/Night Auto (ICR)/Color/B/W

BLC Yes

WDR DWDR

White Balance Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control Auto

Noise Reduction 3D NR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest (RoI) Yes (4 areas)

Smart Illumination Yes

Image Rotation 0°/180°

Mirror Yes

Audio

Built-in MIC Yes

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering;audio detection; intensity change; SMD (human)

Network

Network Port RJ-45 (10/100 Base-T)

Wi-Fi IEEE802.11b/g/n 2.4–2.4835 GHz

Wireless Range Up to 80 m (The performance varies based on actual environment)

SDK and API Yes

Cyber Security

Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Interoperability ONVIF® (Profile S/Profile G); CGI; P2P

User/Host 6 (Total bandwidth: 36 M)

Storage Micro SD card (support max. 256 GB, sold separately)

Browser IE; Chrome; Firefox

Management Software Smart PSS; DSS; DMSS

Mobile Client iOS; Android

Certification

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

CE-RED: Radio Equipment Directive 2014/53/EU;

FCC: 47 CFR FCC Part 15, Subpart B;
