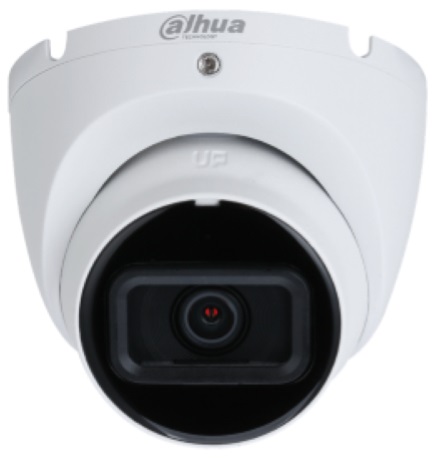

CAMERA VS 2MP EYEBALL 2,8MM BNC IR30M IP67 12VDC 3.2W
Telecamera Dahua Bullet Serie Lite HAC-HDW1200TLM-A-S6
– Risoluzione 2MP Full HD 1080p 1920x1080p
– Ottica fissa 2.8mm
– 4 tecnologie in1 (HDCVI / HDTVI / AHD / ANALOGICA)
– Tecnologia Super Adapt
– Illuminatore IR 30m con 1LED Day/Night (ICR) – BLC – HLC – DWDR
– Protezione IP67 (ideale per l’utilizzo anche in ambienti esterni)
– Dimensioni: φ94.0 mm × 85.7 mm
– Materiale: Carcassa in metallo.
– Sensore Immagine: 1/2.7″ 2MP CMOS
– Illuminazione min.: 0.02Lux/F1.9, 30IRE, 0Lux IR on
– Ottica: 2.8 mm
– Campo Visivo: 119° x 101° x 54° (diagonal x horizontal x vertical)
– Day/Night: ICR
– Portata max. IR: 30 m, Smart IR
– Menu OSD: Multi-lingua
– WDR: DWDR
– Riduzione Rumore: 2D
– Frame Rate: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
– Output Video: 4in1
– In Audio: —
– In/Out Allarme: —
– Pan/Tilt/Rotazione: Pan: 0°~360°; Tilt: 0°~78°; Rotazione: 0°~360°
– Grado di Protezione: IP67
– Temperatura di esercizio: -40°C~+60°C
– Alimentazione: DC12V, Max. 3.1 W
Specifiche
Camera:
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination:
0.01 [email protected] (Color, 30 IRE)
0.001 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 30 m (98.43 ft
Illuminator On/Off Control Auto
Illuminator Number 1 IR light
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Auto Focus No
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F2.0
Field of View H: 102°; V: 60°; D: 129°
Iris Control Fixed
Close Focus Distance 0.5 m (1.64 ft)
Video Frame Rate
CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC; HLC; DWDR
WDR DWDR
White Balance
Auto;Area white balance
Gain Control
Auto
Noise Reduction 3D NR
Illumination Mode Smart IR
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certifications
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12 VDC ± 30%
Power Consumption Max 3.2 W (12 VDC, IR on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal
Product Dimensions φ94.0 mm × 85.7 mm (φ3.70″ × 3.37″)
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.47 kg (1.04 lb)
Installation Wall mount; ceiling mount; vertical pole mount
HAC-HDW1200TLM-S6
108829
19 disponibili
- Consegna rapida: 24/48 ore lavorative
- Pagamento rateizzato: Tramite Klarna (consegna stimata 4/5 giorni lavorativi)
| Peso | 0,3 kg |
|---|
